ADVANCED DIGITAL REPEATR

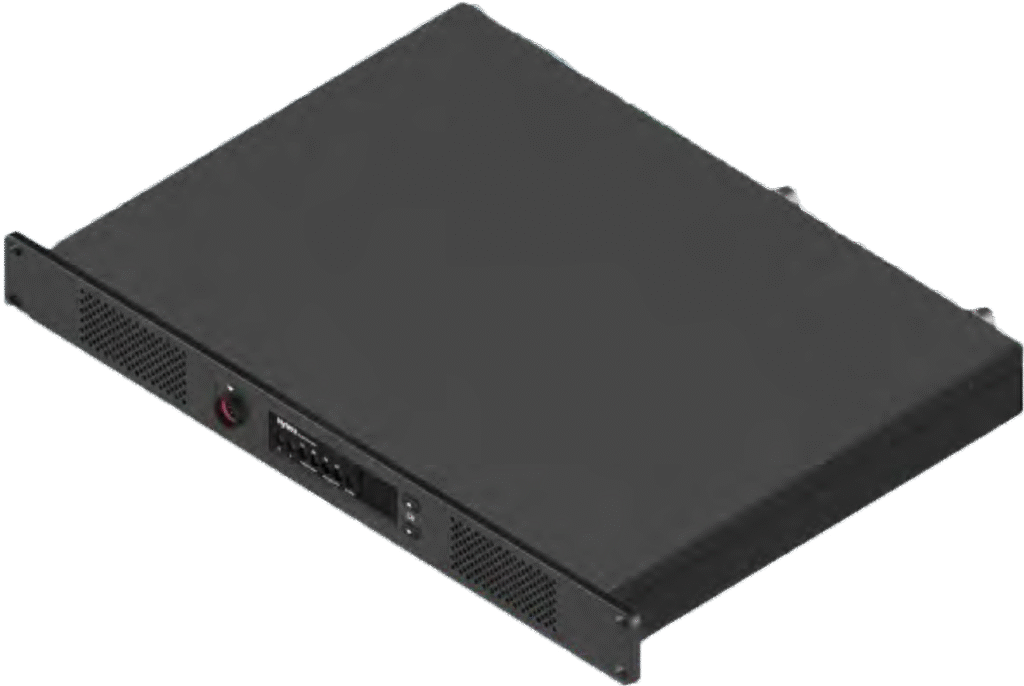

Realix Rx885
Realix Rx885
EMPOWER YOUR OPERATION
Organizations today face growing challenges across sectors like public safety, utilities, and industry. To enhance safety and operational efficiency, reliable and instant communication is vital. The Rx885 series repeater, a next-generation digital solution from Hytera, ensures seamless voice and data communication with wide coverage and high-performance network reliability.
Features
Technical Data
| Frequency Range | UHF : 400 – 470 MHz, VHF : 136 – 174 MHz |
| Channel Capacity | 64 |
| Channel Spacing | 12.5kHz / 20kHz/25kHz |
| Operating Voltage | DC : 13.6 V + 15% AC : 100-240V |
| Battery | 2400 mAh Li-polymer |
| Current Consumpation (DC) | Standby : ≤0.9A Transmitting : ≤12A |
| Current Consumpation (AC) | Standby : ≤0.35A Transmitting : ≤1.2A |
| Frequency Stability | ±0.5 ppm |
| Antenna Impedance | 50Ω |
| Duty Cycle | 100% |
| Dimensions | 44 x 483 x 366 mm |
| Weight | 5.8 kg |
| Networking | Conventional Mode *Digitial Trunking Lite *Simulcast |
| RF Output Power | 5- 50 W (adjustable) |
| FM Modulation | 11KOF3E@12.5kHz; 14KOF3E@20kHz; 16K0F3E@25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD; 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | Operating ≤ 1 GHz : -36dBm > 1GHz: -30dBm; Standby ≤ 1 GHz : -57dBm > 1GHz: -47dBm |
| Modulation Limiting | +2.5kHz@12.5kHz; +4.0kHz@20kHz; +5.0kHz@25kHz |
| FM Hum & Noise | 40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz |
| Adjacent Channel Power | 60dB@12.5kHz; 70dB@20/25kHz |
| Audio Response | +1 ~ -3dB |
| Audio Distortion | <=3% |
| Digital Vocoder Type | AMBE+2™ |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Sensitivity | Analog: 0.18uV (12dB SINAD); 0.16uV (Typical) (12dB SINAD) Digital: 0.18uV/BER5% |
| Selectivity | TIA-603: 60dB@12.5kHz / 75dB@20/25kHz; ETSI: 60dB@12.5kHz/ 70dB@20/25kHz |
| Intermodulation | TIA-603: 75dB@12.5/20/25kHz; ETSI: 70dB@12.5/20/25kHz |
| Spurious Response Rejection | TIA-603: 80dB@12.5/20/25kHz; ETSI: 80dB@12.5/20/25kHz |
| Blocking | 90dB |
| Hum and Noise | 40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz | Conducted Spurious Emission | ≤1GHz : ≤ -57dBm > 1GHz : ≤ -47dBm |
