ADVANCED DIGITAL PORTABLE RADIO

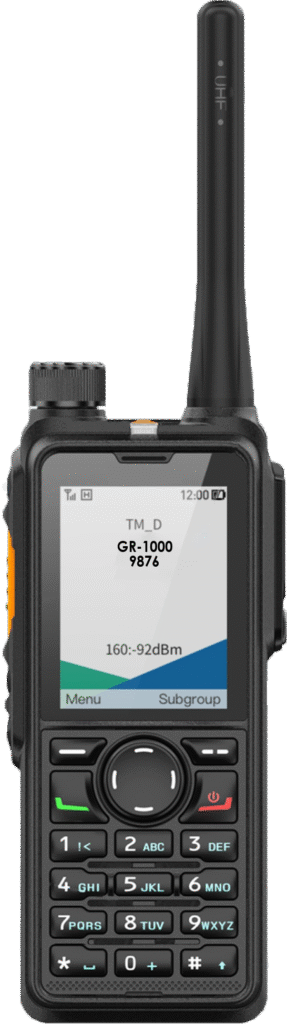

Realix Rx765

Realix Rx765

A Future-Ready Digital Radio Redefining Communication Standards

Realix, a leader in professional digital radios, introduces the Rx765 - its latest innovation shaped by extensive R&D and user feedback. Designed for the future, the Rx765 features powerful audio, long battery life, exceptional portability, and rugged durability. It sets a new benchmark in digital communication, delivering reliable and efficient performance across diverse industries and environments.

Features

Slim and Lightweigh

At just 29.5mm thick and 310g, the Rx765’s slim, lightweight build makes it easy to carry, helping officers stay mission-focused.

LONG BATTERY LIFE

The Rx765’s compact lithium polymer battery provides up to 24 hours of use, ensuring reliable communication throughout an entire shift

RUGGED & DURABLE

The Rx765 meets MIL-STD-810G standards and has an IP68 rating, making it waterproof up to 2 meters for 4 hours and resistant to 2-meter drops onto concrete. It’s built to withstand the toughest environments.

CLEAR AUDIO

The Rx765 delivers louder, clearer sound with a forward-facing speaker and AI-based noise cancellation. Water-porting technology ensures consistent audio clarity, even in wet conditions

EASY TO USE

The Rx765 features a 2.4-inch color display with an intuitive UI, Quick Access Menu, and conversation-style messaging. An Interface Switcher and programmable buttons boost efficiency with fast access to key functions

EXTENDED RANGE

The Rx765 offers extended operational and talk range with high receiver sensitivity and transmit power, enabling communication in previously unreachable areas. This enhances user safety and lowers network costs

Technical Data

Frequency Range  UHF: 350-470MHz; VHF: 136-174MHz
Channel Capacity 1024
Zone Capacity 64
Zone Channels 256
Channel Spacing 12.5kHz/20kHz/25kHz
Operating Voltage  7.7V (rated)
Battery 2400 mAh Li-polymer
Battery Life 24h (GNSS disabled); 20h (GNSS enabled) [5/5/90 Duty Cycle, High TX Power]
Antenna Impedance 50Ω
Frequency Stability ±0.5ppm
Dimensions 132 x 55 x 29.5mm
Weight (with antenna & battery) 310g
Display  LCD, 320×240 pixel, 262000 colors, 2.4 inch, 10 rows
BT 5.0 BLE+EDR
RF Output Power UHF:1W/4W; VHF:1W/5W
FM Modulation 11K0F3E@12.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz
4FSK Modulation 12.5kHz Data Only: 7K60FXD; 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission  -36dBm <1GHz; -30dBm >1GHz
Modulation Limiting  ±2.5kHz@12.5kHz;±4.0kHz@20kHz; ±5.0kHz@25kHz
FM Hum & Noise   40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
Adjacent Channel Power  60dB@12.5kHz; 70dB@20/25kHz
Audio Response  +1 ~ -3dB
Audio Distortion   <=3%
Digital Vocoder Type AMBE+2
Digital Protocol ETSI-TS102 361-1,-2,-3
Sensitivity Analog: 0.18µV (12dB SINAD); 0.16µV (Typical) (12dB SINAD) Digital: 0.18µV/BER5%
Selectivity TIA-603: 60dB@12.5kHz/70dB@20/25kHz ETSI: 60dB@12.5kHz/70dB@20/25kHz
Intermodulation TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz
Spurious Response Rejection TIA-603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
Blocking TIA-603: 80dB ETSI: 84dB
Hum and Noise 40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
Rated Audio Power Output 0.5W
Rated Audio Distortion <=3%
Audio Response +1~-3dB
Conducted Spurious Emission <-57dBm
Technical Sheet
